24 Bay
Inshore Hybrid Double Stepped Catamaran
• Length Overall: 24' 10"
• Length (not including boarding platform): 23' 6"
• Beam: 8' 6"
• Hull Draft: 14–16 in
• Maximum Power: 600 hp
• Transom Height: 25 inch
• Fuel Capacity: 220 US Gallons
• Gunwale Width: 8 inch
• Stern Corner Gunwale Height: 15 in
• Optional Floor Livewells: 40 gallons each
• Center Transom Livewell: 30 gallons
• Weight (dry): 4370 lbs
• Three Piece Construction
• 3 AGM Batteries
• Awlgrip Non-Skid
• Gemlux Flush Mount rod holders in transom
• Dual Bilge Pump, Automatic
• EPA / Coast Guard Approved Fuel Tank (Alum. 5052-H32 Coated)
• Hatch Systems - Sealed
• Stainless Steel Gemlux Hinges
• Center Livewell w/ Pump
• Cockpit Self Draining
• Corecell Structural Foam
• VinylEster Resin, Bi, Tri and Quad Axial fibers
• Courtesy Lights
• Steering Wheel - Stainless Steel
• Push Button Marine Switch Panel w/ Circuit Breakers
• Stainless Steel Pull-Up Cleats
• Bow & Transom Eyes - Stainless Steel
• Coaming bolsters
• Bench seat and forward seat upholstery
• Rub Rail
• Recessed Gemlux Stainless Steel Deck Hardware
• Overbuilt Engineered Lamination Schedule
• Stainless Steel Prop
• 10-Year Limited Structural Hull Warranty
• All Composite "No Wood"
• Console Windshield
• Dual Battery Switch
• US Coast Guard Approved Wiring Code, ABYC Certified Installer
• Console Door, Acrylic
Standard Options
Performance Stats
Typical Cruise (Twin Yamaha 300s)
• 42 MPH @ 2.7 MPG
• Best Miles Per Gallon: 3.0+
• Cruise Range: Over 600+ miles
Top Speed Estimates
• Twin 300s: 75–80 mph
• Twin 225s: 60–65 mph
• Twin 150s: 45–55 mph

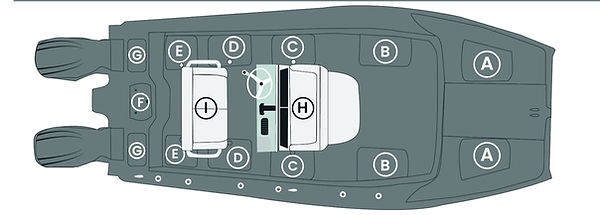

• A. Anchor Lockers
• B. 350 Quart Insulated fish box
• C. Fuel Tank Access
• D. Storage/Livewell/In Deck cooler
• E. Bilge and Pumps compartment
• F. Center Livewell 30 gallons
• G. Storage box/Trash/Small Cooler/Bait box
• H. Console with seat (3 Consoles Available)
• I. Aluminum or Fiberglass Leaning post cooler/livewell
